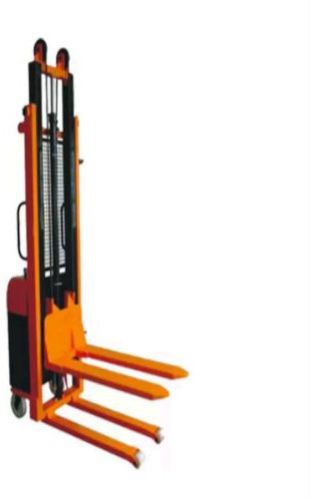

1 Ton Semi Electric Stacker, DC, MH-SES-0515DC

Link Copied
1.64 Lac / Piece
Business Type Manufacturer, Exporter, Supplier
Material MS
Lift 1500, 2500 & 3000 mm
Load Center 600 mm
Click to view more

Product Details

Lifting Speed
0.08 m/sec.
Fork Length
1100 mm
Width over Forks
540 mm
Overall Size
L 1700 x W 700 mm
Front Wheels
DIA 82 x 96 mm – 2 Nos.
Steering Wheels
DIA 200 x 50 mm – 2 Nos.
Type
Semi Electric Stacker
Brand Name
Swift Technoplast
Certification
ISO 9001:2015
Application
Lifting Goods
Color
Yellow
Condition
New
Capacity
500 & 1000 Kg
Automatic Grade
Semi Automatic
Driven Type
Electric
Warranty
6 Months
Country of Origin
India
Loading Capacity
500-1000kg
Number Of Wheels
4
Lifting Ht.
3000 Mm
Power Supply
DC
Lifting Capacity
1 Ton
Battery Charger
230 V AC battery charger
Model Name/Number
MH-SES-1015DC
Product Code
MH-SES-1015DC
Delivery Time
Within 10-15 days

Our Hydraulic Operated stackers and all equipment’s are precisely engineered by maintaining Highest Quality standards in manufacturing process. We also manufacture hydraulic stacker with additional attachment unit which can be customized as per customer products handling.



Key Features :-

  • Capacity: 500 & 1000 kg
  • Lift: 1500, 2500 & 3000 mm
  • Load Center: 600 mm
  • Lifting Speed: 0.08 m/sec.
  • Fork Length: 1100 mm
  • Width over Forks: 540 mm
  • Overall Size: L 1700 x W 700 mm
  • Front Wheels: DIA 82 x 96 mm – 2 Nos.
  • Steering Wheels: DIA 200 x 50 mm – 2 Nos.



Description & Features :-

  • Semi Electric Stacker provides up & down movement with 24V Battery & manual pulling & pushing.
  • BCH make adjustable height limit switch.
  • Semi Electric Stacker has a lever-operated directional control valve with an inbuilt pressure
  • relief valve for up & down movement.
  • Semi Electric Stackers are available in counterbalanced type (capacity: 500 kg).
  • Available in straddle leg stackers with adjustable forks (capacity: 500 & 1000 kg).
  • 3HP, 24 VDC electric motor for lifting with Dowty make oil gear pump.
  • Operated by 24V heavy-duty contactor.
  • Semi Electric Stacker has an oil tank with an oil level indicator, oil breather, suction strainer, etc.
  • A separate 24VDC, 230 VAC battery charger is needed to charge the battery.
  • Battery – 24V, 85Amp – Hr, Tubular monoblock.

Yes! I am interested


Technical Specifications

MODEL SESO515 DC SESO525 DC SESO530 DC SES1015 DC SES1025 DC SES1030 DC
Lifting capacity (kg) 500 500 500 1000 1000 1000
Max. Fork height H1 (mm) 1500 2500 3000 1500 2500 3000
Min. Fork height H2 (mm) 100 100 100 100 100 100
Min. Overall Height H3 (mm) 1600 2100 2400 1600 2100 2400
Max. Overall Height H4 (mm) 2300 3300 3900 2300 3300 3900
